Articulating boom lifts · Electric drive

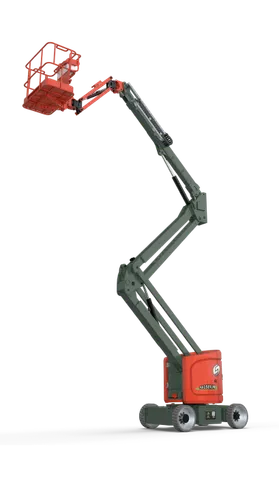

AB15ERJN (AB490ERJN)
Working height16.8m≈ 5 floors
Platform capacity230kg
Gradeability25%
Standards: CE/ANSI/CSA/GB
Highlights
Outstanding performance
- Industry-leading 230 kg platform capacity
- Fully proportional joysticks for smooth, precise operation
- AC drive motors — efficient and maintenance-free
Flexible operation
- Compact design passes through standard double doors and manoeuvres easily on confined sites
- Rotating jib reaches over obstacles into the most congested areas
- Zero tail swing — work right up against obstacles
Energy-saving and environmentally friendly
- Emission-free operation for the most sensitive environments
- Electric boom functions and AC drive give excellent run times
Specifications
| Max. platform height | 14.8 m |
| Max. working height | 16.8 m |
| Max. horizontal outreach | 7 m |
| Length, stowed | 6.98 m |
| Width, stowed | 1.5 m |
| Height, stowed | 1.98 m |
| Wheelbase | 1.75 m |
| Ground clearance | 0.13 m |
| Platform size (L×W×H) | 1.4 m×0.8 m×1.1 m |
| Platform capacity (full envelope / 2 persons) | 230 kg |
| Turntable rotation | 355° / Non-Continuous |
| Platform rotation | 180° |
| Drive speed (stowed) | 0 – 6 km/h |
| Drive speed (raised) | 0 – 0.6 km/h |
| Gradeability | 25% (2WD) |
| Turning radius, inside | 0.9 m |
| Turning radius, outside | 3 m |
| Tail swing | 0.035 m (1.4"） |
| Max. tilt | 3° |
| Drive × steer | 2WD×2WS |
| Tyres | 600×190 (non-marking,solid) |
| Batteries | 8×6 V, 340 Ah (5 hr)/390 Ah (20 hr) (AGM batteries) |
| Auxiliary power unit | 12 VDC |
| Hydraulic tank capacity | 40 L/10.6 gal (US)) |
| Weight | 8,500 kg |
| Standards | CE/ANSI/CSA/GB |
Standard equipment
- Hydraulic platform levelling
- 180° platform rotation
- Max. tilt rating 3°
- Hydraulic cylinder protective covers
- 100° jib rotation (AB15ERJN)
- Flashing beacon
- Tilt protection system
- Platform load sensing (overload protection)
- Fault diagnosis system
- Emergency stop
- Emergency lowering system
- Reverse position and travel confirmation
- AC power outlet on the platform
- Horn and buzzer
- Manual storage box
- Secondary guarding device
Optional equipment
- Overhead anti-collision device
- Platform guardrails
- Swing entry gate
- Platform work light
- GPS tracking (telematics)
- White-noise motion alarm
- Tool box / tool tray
Data from the manufacturer's official specification. The manufacturer reserves the right to change specifications.

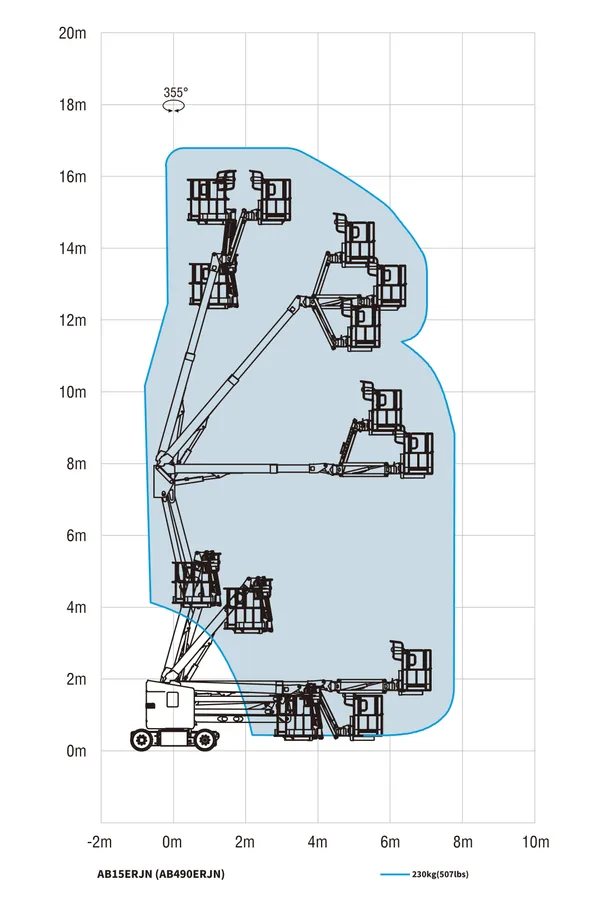

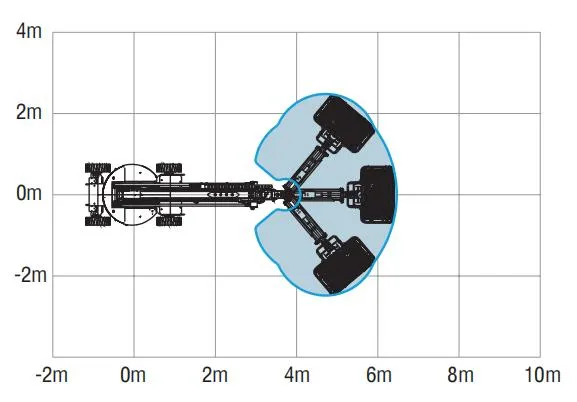

Drawings
